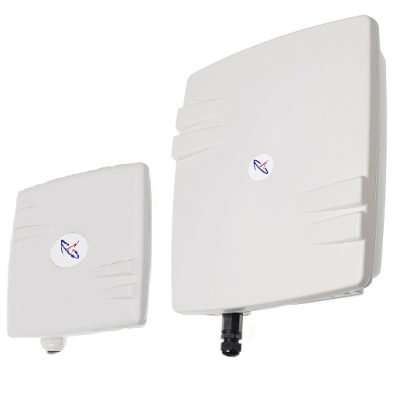

AirPoint
Intelligent dual radio wireless backhaul that integrates the benefits of two links radios into a single unit for ultimate operational flexibility.
The low latency and low jitter provide reliable delivery of delay-sensitive services including Voice over IP (VoIP), high-definition video, and prioritized data traffic.
In the Link Aggregation mode, the AirHaul provides up to 530-650 Mbps of useful data throughput and in the Repeater mode, links can span up to 50 miles (80km).
Link Aggregation Mode
Up to 867 Mbps of useful data throughput, links can span up to 25 miles (40km)
Bandwidth
Up to 530 Mbps (867Mbps raw speed) in AC 2x2 MIMO mode
Power Consumption
10W; 30V fed from Power-over-Ethernet injector; 115/230 Vac; optional Uninterruptible Power Supply (UPS)
Technical Specifications
In the Link Aggregation mode, the AirPoint provides up to 867 Mbps of useful data throughput, links can span up to 25 miles (40km).
Bandwidth
Bandwidth up to 530 Mbps (867Mbps raw speed) in AC 2x2 MIMO mode
Power Consumption
10W; 30V fed from Power-over-Ethernet injector; 115/230 Vac; optional Uninterruptible Power Supply (UPS)
Operating Temp
-40…+60 deg C
Frequency Bands (GHz)
5GHz: 5.150-5.350 (5 MHz step) 5.725-5.825 (5 MHz step) 5.47-5.725 GHz, 4.90-6.1GHz
DFS (Dynamic Frequency Select)
Feature for regions requiring DFS enabled
Radio Type
Direct Sequence Spread Spectrum (DSSS)
Modulation 5GHz
OFDM (BPSK, QPSK, 16-QAM, 64-QAM); Dynamic (Adaptable to Conditions)
RF Channels
Software Selectable 5, 10, 20, 40, 80MHz; also custom channel widths available
Latency
<3 mSec
RF Output Power
18dBm (63mW, standard power) or 28dBm (630mW, high power version) – TPC (Transmit Power Control), 1dB steps under software control. Minimum power 0dBm
